The core differences between loop chain electric hoists and wire rope electric hoists are concentrated in structural materials, performance scenarios, and usage details. The core conclusion is that loop chain hoists focus on medium to light loads, precise control, and indoor dry environments, while wire rope hoists focus on heavy loads, high speeds, and complex working conditions.
Comparison of core differences
1. Structure and Material
Loop chain electric hoist: uses high-strength alloy chains as load-bearing components, with a compact structure and light weight.

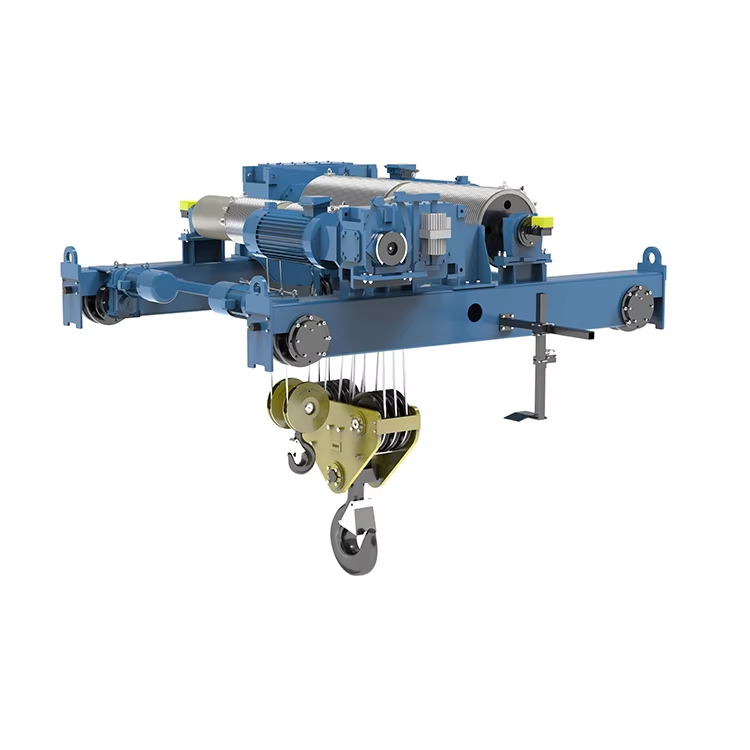

Wire rope electric hoist: It uses multiple strands of wire rope as load-bearing components, combined with a drum winding, and has a relatively large overall volume.
2.Performance and Applicable Scenarios
Loop chain electric hoist: The lifting capacity is usually 0.1-50 tons, the lifting speed is slow but stable, and the positioning accuracy is high. Suitable for indoor dry and low dust scenarios, such as workshop assembly and small warehouse lifting.
Wire rope electric hoist: with a wider lifting capacity range (0.5-100 tons+), fast lifting speed, and strong impact resistance. Can adapt to outdoor, humid, dusty or high-temperature environments, such as port loading and unloading, construction, and heavy equipment handling.
3.Usage details and maintenance
Ring chain electric hoist: The chain is not easy to slip and is easy to maintain (regular lubrication is sufficient), but the chain is prone to rust and should be avoided from long-term outdoor storage.
Wire rope electric hoist: The wire rope has good flexibility and wear resistance, but it needs to be regularly inspected for broken wires and rust. The maintenance frequency is slightly higher, and it has a strong dependence on the drum and rope guide.
4.Safety and Cost
Loop chain electric hoist: more sensitive overload protection, low risk of breakage, relatively affordable unit price, and low maintenance cost in the future.
Wire rope electric hoist: It has strong load-bearing stability and can be equipped with multiple safety devices (such as anti skipping rope devices), but the unit price and maintenance cost are relatively high.
